Joyance 15kg payload fumigation drone remote control sprayer drone agriculture sprayer

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $7200.00
  • 5 - 9 Sets
    US $7000.00
  • 10 - 19 Sets
    US $6500.00
  • >=20 Sets
    US $6000.00
Report Suspicious Activity
Overview
Quick Details
Type:
Cargo Airplane
Condition:
New
Year Built:
2017
Place of Origin:
Shandong, China (Mainland)
Model Number:
15-606
Item:
15L professional long range drone
Power Source:
Li-Po battery
Nozzle:
2 Electrostatic Centrifugal Nozzles
Tank capacity:
15 L
Control:
remote controler Futaba
Spraying width:
4-6m
Certification:
CE, FCC, ROHS
Spray efficiency:
6-8 hectares per hour
Flying speed:
0-12m/s
Spray speed:
0~8m/s
SupplyAbility
SupplyAbility:
300 Set/Sets per Month drone agriculture sprayer
Packaging & Delivery
Packaging Details
One unit drone with all the options will be put into one Aluminum packing case;
Port
Qingdao
Lead Time :
7-10 days after 100% payment
Video Description
Prouct discription

Joyance 15kg payload fumigation drone remote control sprayer drones drone pulverizador

MODEL
15-606
Pesticide tank
15L
Structure
6 axles 8 rotors
Net weight
13.5KG
Max take-of weight
35KG
Spraying efficiency
6-8 hectares per hour
Flying time
10-15min
Flying height
1~3m above the top of crop
Flying radium
1000m
Nozzles
2 pcs electrostatic centrifugal nozzles
Spraying width
4-5m
Spreading size
W1.55mxL1.55mxH0.35m
Fold size
W0.7mxL0.7mxH0.55m
Battery
6S 12000mAh 2pcs
Charger
4-way charger
Remote controller
FUTABA T8FG
Packing size
74*74*79cm

OPTIONAL PARTS TO CHOOSE


FPV
image transimission +camera+ 7" Screen + Tripod +Battery + Sunshade
OSD
Show flight data on the screen
DCU
Control spraying flow accroding to speed
TERRAIN FOLLOWING RADAR
Control the height automatically
Ground control station
Autonomous flying
battery charger
four-way charger
bettery
extra 16000mah batteries

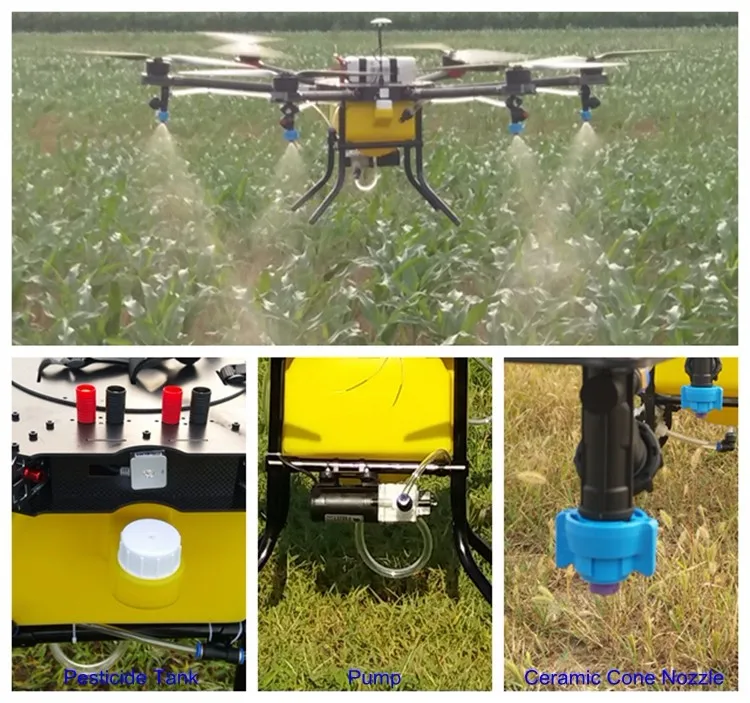

Sprayer components

Sprayer Control System


1. Self-developed 32 bits flight control, especially used for sprayer drone, high performance of balance. Breakpoint continue to spray, Failsafe and return, Low battery protection
2. GPS : U-blox m8n GPS
3. Remote controller: Futaba

Sprayer Spraying System: Pump, tank, hose, nozzle

1. High quality electic centifugal nozzles , can spray all most of the crops, especially the lower plants and small leaves plants Each nozzle installed under the propeller, can ensure the spraying effect.
2. High quality pesticide tank, no leaking
3. High quality hose and pump

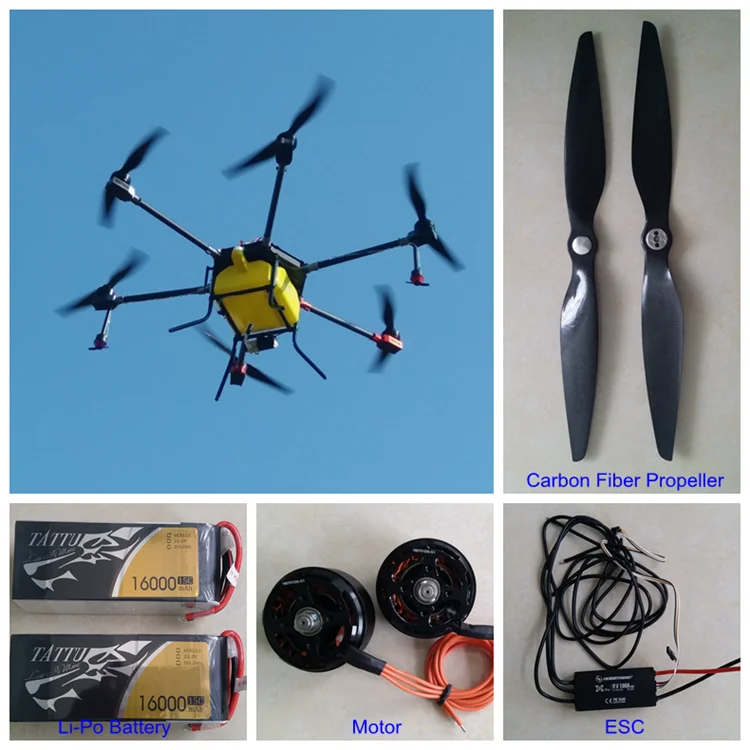

Power System: Motors, Propellers, Li-po battery, ESC, axles

1)  Li-Po Batteries*1, life up to 300 cycles of chare and discharge
2) 12S brushless heavy duty motor*6, dustproof, with internal centrifugal fan ensure lower working temperature.
3) Carbon fiber composite propeller, much lighter and durable

Key parts
REMOTE CONTROLLER

World famous brand FUTABA remote controller, can give you best control feeling.

Quick realease parts

Easy to aseemble the carbon propellers , no need any bolts.

Optionals

FPV : Fixed Camera + Image Transmission+7" Screen + Tripod + Battery + Sunshade

Function: can show the flight image on the screen

OSD: show flight data on the screen

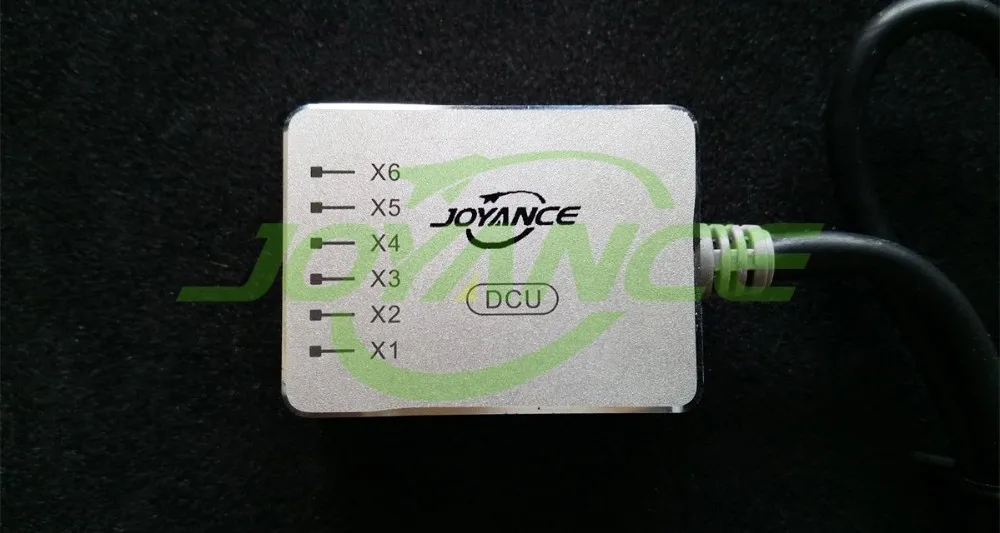

DCU: Automatically control the spray flow accroding to the flying speed.

Groud control station - atonomous flying mode

Mark A B C D, and define the flying height, spraying width, flying speed and delay time, the Ground Station Software will create flying routes automatically,and you can save this as one project, so that you can use it again when you need to spray this field once more.

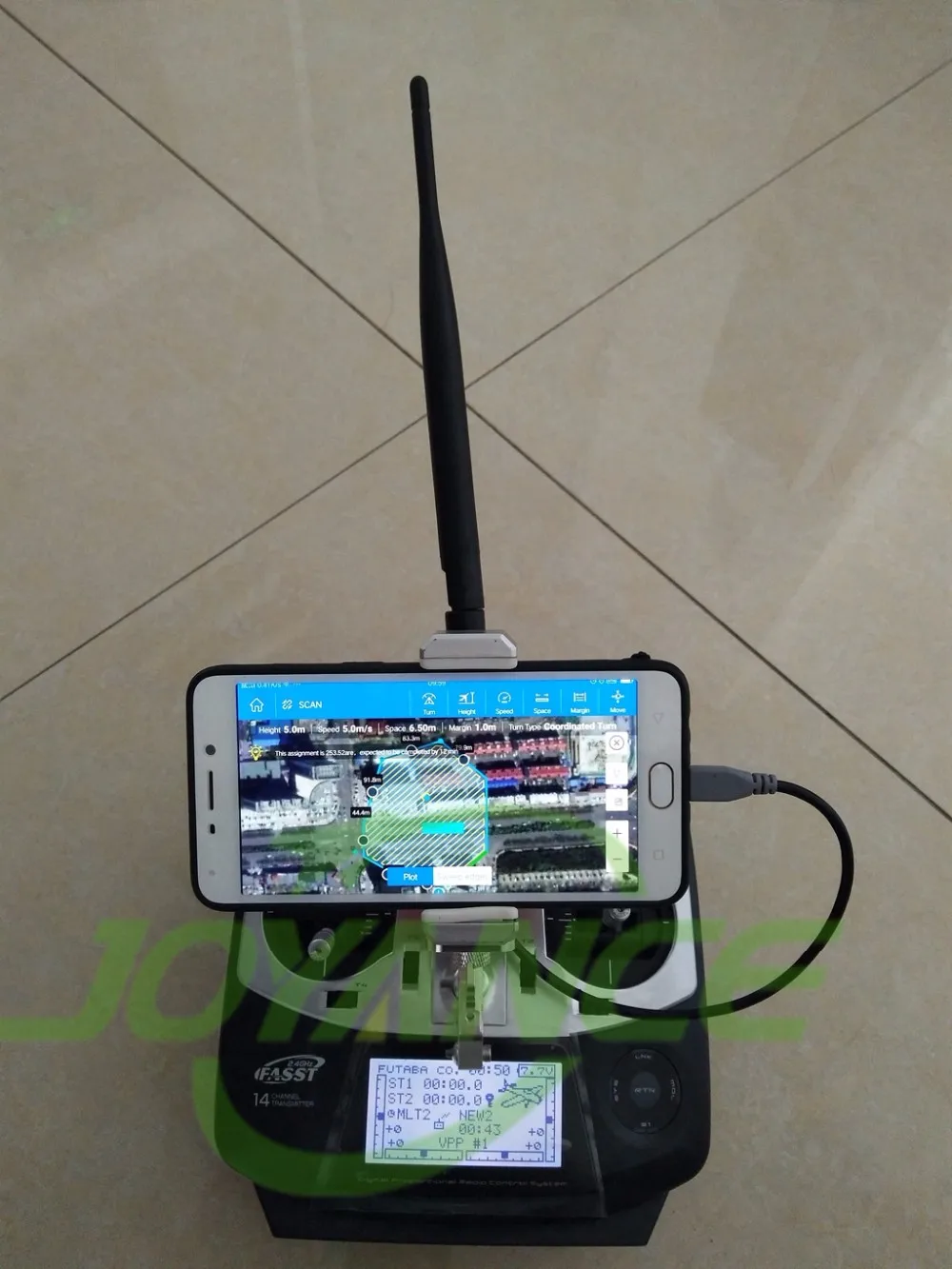

Mobile phone APP

You can use the mobile APP easily for the drone autopilot

Continuous Spraying:


In order to work continuously, you need extra batteries and extra adapters+chargers.
10 units of extra batteries and 2 units of extra adapters+chargers are recommended.


Terrain Following

With terrain following radar can automatically control the height above the crops, spraying effect not influenced by the terrain.

WHY CHOOSE US

Shandong Joyance Intelligence Technology Co., Ltd.


1. 6 years of R&D experience

2. Concentrate  on drone sprayer only

3. 100 units drone per month output

4. CE, FCC, RoHS certification

5. 12 national patents pn 5 models

6. 33 different countries users

SUPPORT

1.  On-line technical support

2.  Provide operation manual & video, and free training in our factory

3.  All the spare parts are easy to be replaced by customers themselves.

4.  ALL update software share free

5.  Special discounts price for distributors

SPRAYER DRONE SHOW

Joyance drones are popular at AgQuip 2017 Australia.

We are very popular on the Agiculture show and  have sold out all samples we have bought.

FAQ

Q. Are you trading company or factory?
A. We are a professional R&D and production of agricultural drones factory.

Q. About transportation?
A. a) by sea (to your nearest sea port)
     b) by air transport (to your nearest airport)
     c) by air express (to your specific address)


Q. About delievery time?
A. Generally it's 2-3 days if the goods are in stock, or 7-15 days if the goods are not in stock. It's according to order quantity.

Q. How can I get discount?
A. We have different discount items for different order quantities, please contact with me for more details.

Any questions please contact us directly

Grace Sun
Skype: clara.sun3
Whatsapp: +8615553646020
Wechat: +8615553646020
