Quick Details

  • Type: Gyroplane
  • Condition: New
  • Year Built: 2017
  • Place of Origin: Shandong, China (Mainland)
  • Model Number: JT Sprayer 15-608
  • Item: 15L Drone Agriculture Sprayer
  • Power Source: Li-Po battery
  • Nozzle: 6 high pressure standard Nozzles
  • Tank capacity: 15 L
  • Control: remote controler Futaba
  • Spraying width: 5-7m
  • Certification: CE, FCC, ROHS
  • Spray efficiency: 3-4 acres per 10 minutes
  • Flying speed: 0-12m/s
  • Spray speed: 0~8m/s

Packaging & Delivery

Packaging Details One unit drone with all the options will be put into one Aluminum packing case;
China Drone Uav Drone Crop Sprayer 6 Axis 20Kg Agriculture Spraying Machine Agriculture Drone For Agriculture Purpose
Delivery Time 7-10 days after 100% payment
Prouct discription

JOYANCE SPRAYER DRONES FIVE MODELS SPECIFICATIONS-  STANDARD EQUIPMENT DRONES

MODEL
6-606
10-608
15-608
10-606
15-606
Pesticide tank
6L
10L
15L
10L
15L
Structure
6 axles 6 rotors
6 axles 8 rotors
6 axles 8 rotors
6axles 6 rotors
6 axles 8 rotors
Net weight
7.5KG
11KG
15KG
10.5KG
13.5KG
Max take-of weight
18KG
28KG
40KG
25KG
35KG
Spraying efficiency
2-3 acres per hour
5-6acres per hour
6-7acres per hour
3-4acres per hour
5-6acres per hour
Flying time
10-15min
10-15min
10-15min
10-15min
10-15min
Flying height
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
1~3m above the top of crop
Flying radium
1000m
1000m
1000m
1000m
1000m
Nozzles
4 high pressure nozzles
4  high pressure nozzles
6  high pressure nozzle
2 pcs electrostatic centrifugal nozzles
2 pcs electrostatic centrifugal nozzles
Spraying width
3-4m
4-6m
5-7m
3.5-5.5m
4-5m
Spreading size
W1.2mxL1.2mxH0.3m
W1.8mxL1.3mxH0.4m
W2.65mxL1.55mxH0.35m
W1.3mxL1.3mxH0.4m
W1.55mxL1.55mxH0.35m
Fold size
W0.5mxL0.4mxH0.5m
W0.7mxL0.5mxH0.5m
W0.95mxL0.7mxH0.55m
W0.5mxL0.5mxH0.5m
W0.7mxL0.7mxH0.55m
Battery
6S 12000mAh 1pcs
6S 16000mAh 2pcs
6S 16000mAh 2pcs
6S 12000mAh 2pcs
6S 12000mAh 2pcs
Charger
1-way charger
4-way charger
4-way charger
4-way charger
4-way charger
Remote controller
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
Packing size
63*63*63cm
74*74*79cm
74*79*79cm
74*74*79cm
74*74*79cm

OPTIONAL PARTS TO CHOOSE


FPV
image transimission +camera+ 7" Screen + Tripod +Battery + Sunshade
OSD
Show flight data on the screen
DCU
Control spraying flow accroding to speed
TERRAIN FOLLOWING RADAR
Control the height automatically
Ground control station
Autonomous flying
battery charger
four-way charger
bettery
extra 16000mah batteries
Products feature 2

Spraying effective

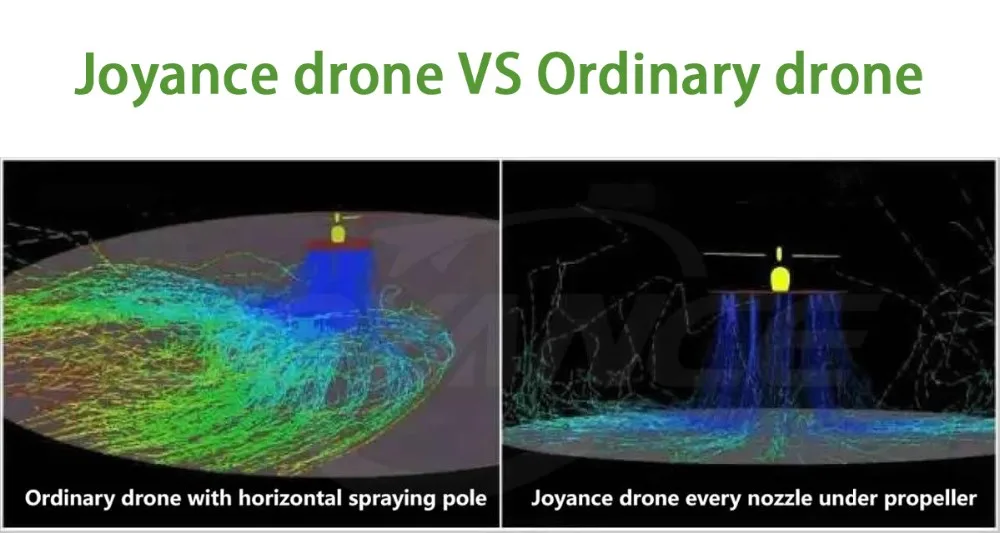

All the nozzles are installed under the propeller, most effective. The chemical fog can be directly pressed to all leaves of the crop by the strong air flow generated by the propellers.

Better design

Neat design and umbrella folding design : easy to maintain( easy to find problems and repair) and convenient for transport.

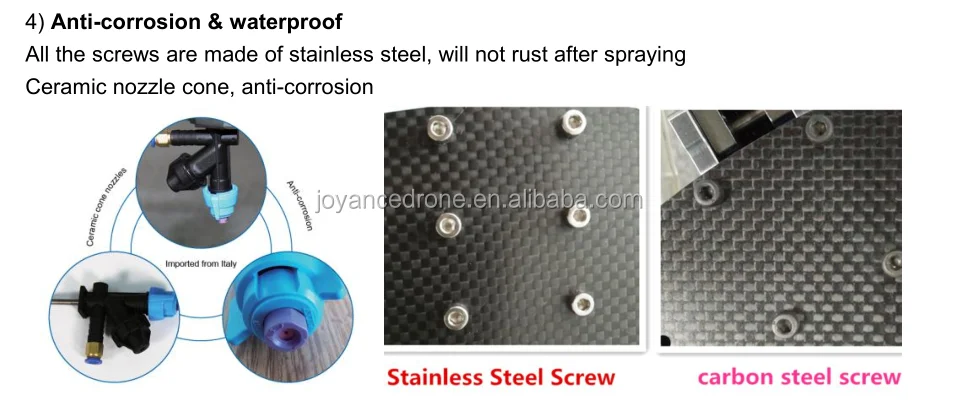

 Material durable and waterproof:

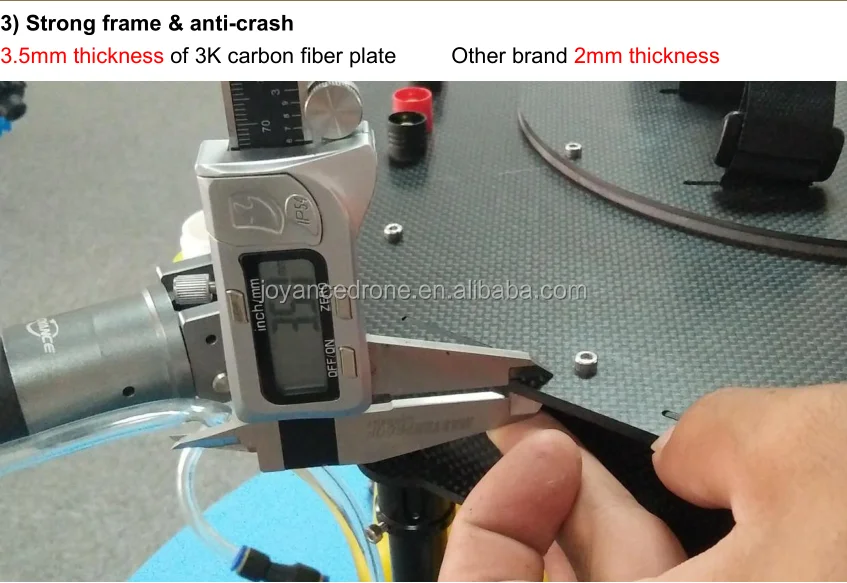

Frame is made with thick carbon fiber, waterproof. Stable, reliable and durable

All the parts are of high quality, and easy to replace by the user, no need return to factory for repair, save cost and time.

SPRAYER DRONE SHOW

Joyance drones are popular at AgQuip 2017 Australia.

We are very popular on the Agiculture show and  have sold out all samples we have bought.

Optionals

FPV : Fixed Camera + Image Transmission+7" Screen + Tripod + Battery + Sunshade

Function: can show the flight image on the screen

OSD: show flight data on the screen

DCU: Automatically control the spray flow accroding to the flying speed.

Groud control station - atonomous flying mode

Mark A B C D, and define the flying height, spraying width, flying speed and delay time, the Ground Station Software will create flying routes automatically,and you can save this as one project, so that you can use it again when you need to spray this field once more.

Mobile phone APP

You can use the mobile APP easily for the drone autopilot

Continuous Spraying:


In order to work continuously, you need extra batteries and extra adapters+chargers.
10 units of extra batteries and 2 units of extra adapters+chargers are recommended.


Terrain Following

With terrain following radar can automatically control the height above the crops, spraying effect not influenced by the terrain.
