15L-606 uav agricultural crop drone sprayer for pesticides spraying with autonomous flight

FOB Reference Price:Get Latest Price
US $6,600-7,200 / Units | 1 Unit/Units 15L-606 uav agricultural crop drone sprayer for pesticides spray (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Gyroplane
Condition:
New
Year Built:
2017
Place of Origin:
Shandong, China (Mainland)
Model Number:
JT 15L-606
Product name:
15L-606 uav agricultural crop drone sprayer for pesticides spraying
Usage:
Pesticide Spraying
Material:
Carbon Fibre + Aviation Aluminum
Certificate:
CE FCC ROHS
Pesticide tank:
15L
Spray span:
4-6m
Spraying efficiency:
>4 ha per hour
Control system:
Ground Control Station
Flight time:
10-15 min
Function:
Spraying Pesticides Smartly
SupplyAbility
SupplyAbility:
100 Unit/Units per Month 15L-606 uav agricultural crop drone sprayer for pesticides spray
Packaging & Delivery
Packaging Details
Aluminum case for 15L-606 uav agricultural crop drone sprayer for pesticides spraying.
Port
Qingdao Port
Lead Time :
7-15 days after receiving deposit for one unit.
Product Description

Product Application

15L-606 uav agricultural crop drone sprayer for pesticides spraying is a new technology applied to agriculture pesticides spraying with wide range of application, such as crop, vegetables, fruit tree, sugarcane, coffee, tea, and etc. We have many models, including 6L 10L 15L and 20L. We have exported to 33 countries.

15L-606 uav agricultural crop drone sprayer for pesticides spraying
Pesticide Tank
15L
Net Weight
13.5Kg
Take-off Weight
31kg
Max Take-off Capacity
35kg
Flying Time
10~15min
Flying Height
0~30m
Flying Speed
0~12m/s
Spray Speed
0~8m/s
Spray Width/Nozzle No.
>4~6m / 2 Nozzles
(Electrostatic centrifugal nozzles)
Spray efficiency
>4 hectares/hour

Machine Size
Spread size: W1.65m x L1.45m x H0.47m
Folded size: W0.7m x L0.7m x H0.63m
Main features

Ready to fly.

Before despatch, every machine is 100% tested to confirm the highest standards in performance.

Efficient

15L-606 sprayer drone, the spray span can be 4-6m, the spraying efficiency is 4-6 hectares per hour.

More effective

Every nozzle is under the propellers, so the chemical fog can be directly pressed to every levels of the crop by the strong air flow generated by propellers.

Easy to operate.

Original semi-automatic intellignet spraying method, even a beginner can operate the sprayer drone very easily and efficiently.

Easy to transport.

Umbrella design folding frame, convenient to fold and transport.

Easy maintenance.

The main parts are easy to replace. Maintenance cost are very cheap.

Work continuously.

6 axles and 6/8 motors can easily bear the workload. There is centrifugal fan in each motor, which can keep the motors work at low temperature, so it can work continuouly.

Autonomous flight.

Use our Ground Station Software, just mark A B C D four points, and define the flight height, flight speed, spray span and delay time, the Ground Station Software will draw all the flignt lines automatically, then the drone will work autonomously following the lines. You can save this as one project, so that you can use it when you need to spray this field once more.

Fail-safe

Fail safe; low voltage alarm; return automatically when lose signal to ensure the safe landing.

Our Company

Shandong Joyance Intelligence Technology Co., Ltd. is a high-tech enterprise, we have a professional R&D team, we have spent four years in researching and developing agricultural sprayer drones. We concentrate on commercial grade unmanned aerial vehicles and UAV application solutions.

We have a registered capital of 60 million RMB, with a production capacity of 100 units of agriculture drones per month.

We choose high grade key parts, to ensure stable and reliable quality, we utilize advanced production technology to ensure every drone from Joyance is well crafted!

Our mission is to make the drones that farmers desire.

Certifications

Our customers

We have exported to more than 35 countries.

Detailed Images
Main frame

Material: Carbon fiber and aviation aluminum

Features: Light, strong and durable.

Quick release + propellers

Brand: Joyance
Original: China
Quick release propeller, easy to disassemble.

Electrostatic centrifugal nozzle


Perfect atomization effect, chemical fog droplet is 50-100 microns. The fog has electrostatic adsorption capacity so that it can evenly adsord on the surface of the crop and achieve a better effect.

Motor

Brand: Joyance
Original: China
Aviation aluminum material, strong and durable;

Centrifugal fan, good heat dissipation, work continuously.

Water proof.

Remote controller

Brand: Datalink-32
remote controller, remote distance 1Km


FPV (Optional)

Include fixed camera, Image transmission, OSD, 7" screen, Tripod and Sunshade.

With FPV, you can check the front and bottom of the drone to confirm there is no obstacles. By OSD, you can also see the flight height, flight speed, battery voltage, longitude, latitude, etc.

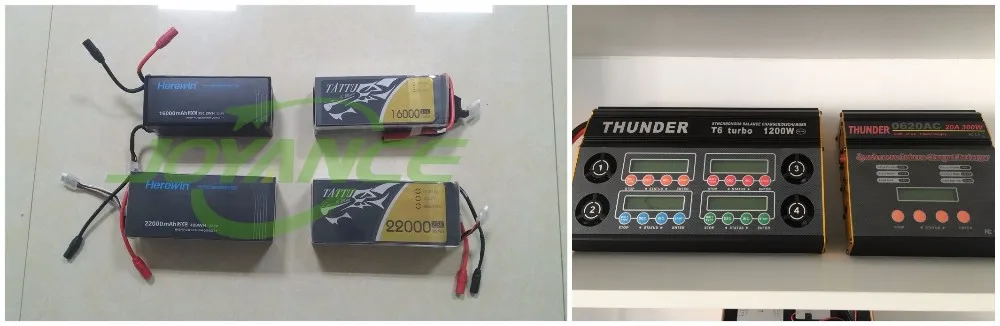

Batteries and charger

Lithium-polymer battery(LI-PO);

12000mAh, 16000mAh, 22000mAh, three models.

Life up to 300 circles.

Our synchronous balance charger can finish 1 pack of 16000mAh in 40-50 minutes.

Other parts


1. Radio Telemetry
Radio Telemetry can help you to control the drones by Ground Control Station software installed on your computer.
It includes two parts, one is installed on the drone and the other is installed on the computer.

2. DCU (Optional)
Dosage Control Unit.
3. Terrain Following Radar (Optional)
MMW Radar, can detect the distance between the ground and the drone.
Packing & Delivery

Packaging: Aluminum case

Delivery time: 7-10 days after receiving deposit. This time is for one unit, if you want more, please contact us for the actual delivery time.
