Quick Details

  • Type: Gyroplane
  • Condition: New
  • Year Built: 2017
  • Place of Origin: Shandong, China (Mainland)
  • Model Number: JT Sprayer 15-606
  • Product name: Sprayer drone
  • Material: Carbon Fibre + Aviation Aluminum
  • Control system: Remote Control
  • Structure: Umbrella Foldable
  • Usage: Agriculture/farm pesticide spraying
  • Battery: 2 pcs 16000mAh Li-Po batteries
  • Nozzle: Electrostatic centrifugal nozzles
  • Flying speed: 10-15 min
  • Spraying speed: 0-8 m/s
  • Certificate: CE, FCC, ROHS

Packaging & Delivery

Packaging Details One unit sprayer drone with all the options will be put into one Aluminum packing case;
Packing size: 70cm(Length) x 70cm(Width) x 55cm(Height)
Delivery Time 7-15 days after receiveing 100% payment.
Product Description

Heavy Lift Crop Duster Sprayer,Crop Sprayer Drone,Pesticide Spraying Drone with FPV & GPS

Model
JT Sprayer 15-606
Pesticide Tank
15L
Net Weight
13.5kg
Gross Weight
31kg
Max Take-off Capacity
35kg
Flying Time
10~15min
Flying Radius
0~1000m
Flying Height
0~200m
Flying Speed
0~12m/s
Work Temperature
-10~70°C
Work Humidity
0~90%
Spray Speed
0~8m/s
Spray Width/Nozzle No.
>4~6m / 2 Electrostatic Centrifugal Nozzles
Spray Flow
0.2~2L/min
Spray Efficiency
1500~3000sq.m/min
Flying Downward Airflow
4~15m/s
Wind Resistance
10m/s
Spread Size
W1.55m x L1.55m x H0.35m
Folded Size
W0.7m x L0.55m x H0.7m
Motor
Brushless
Propeller
Carbon Fiber
ESC
Rapid Throttle Response
Flight Control
V7.1
Remote Controller
Tutaba T8FG
Battery / Quantity
6S 16000mAh 15C / 2pcs
Adapter + Charger
Synchronous balance charger
Packing Case
Aluminum Case
Toolkit
Maintenance/Repair Tools
Optional
Fixed Camera + Image Transmission
600mw
OSD
OSD
Screen
7"

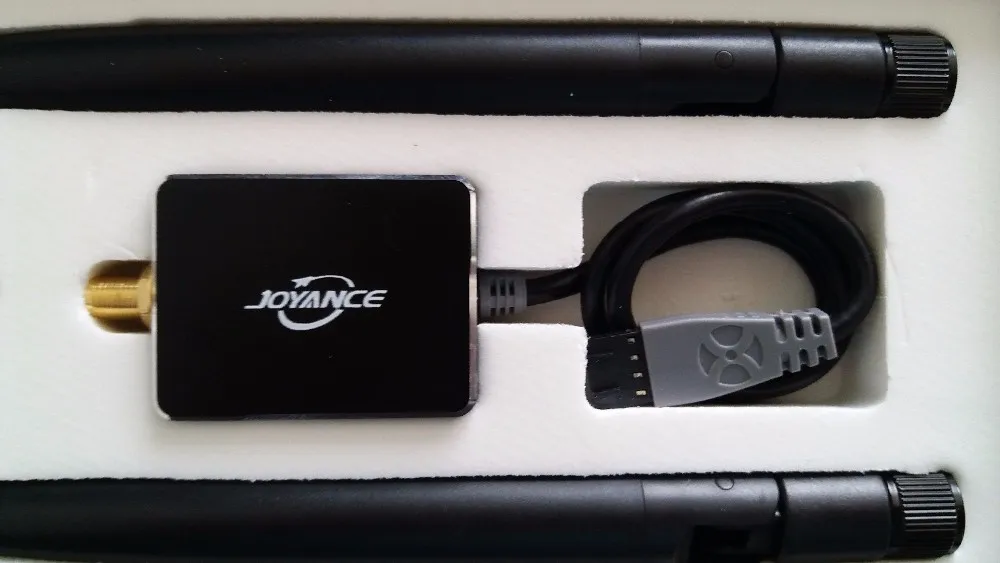

Ground Control Station Software + Radio Telemetry
V7.1A
Product Show

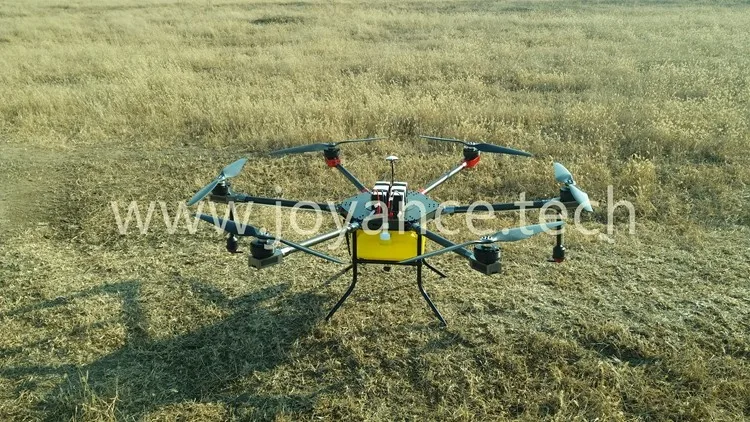

Spread

Spread size: W155cm  x  L155cm  x  H35cm

Spraying width 2m,high spraying efficiency.

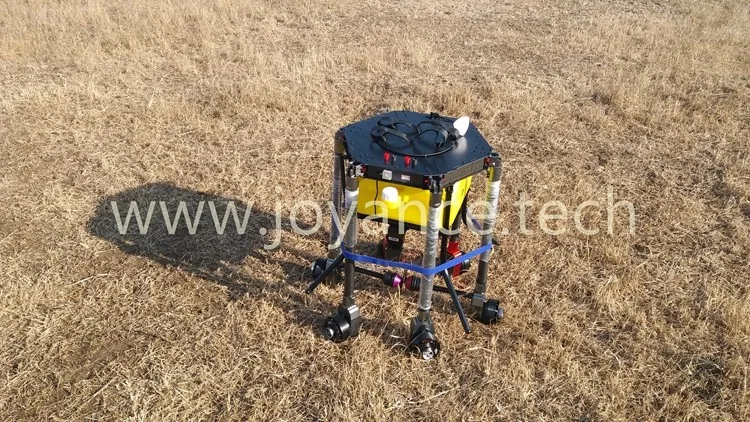

Umbrella Folded

Fold size: W70cm x L70cm x H55cm

Easy to transport,one small truck can carry one.

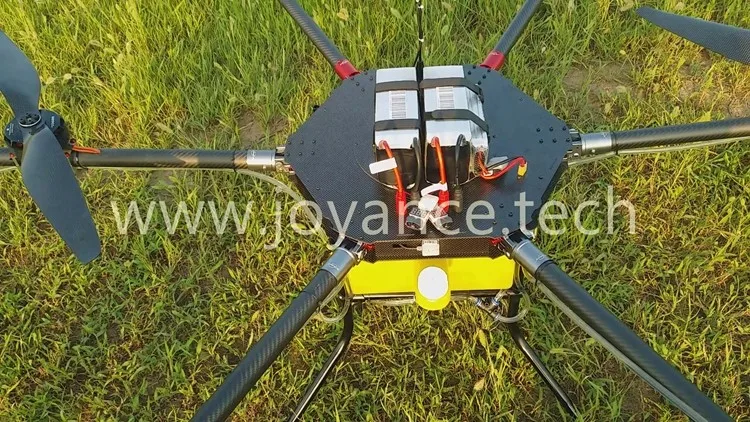

Power System: Li-Po Battery, Motors, Propellers, ESC.

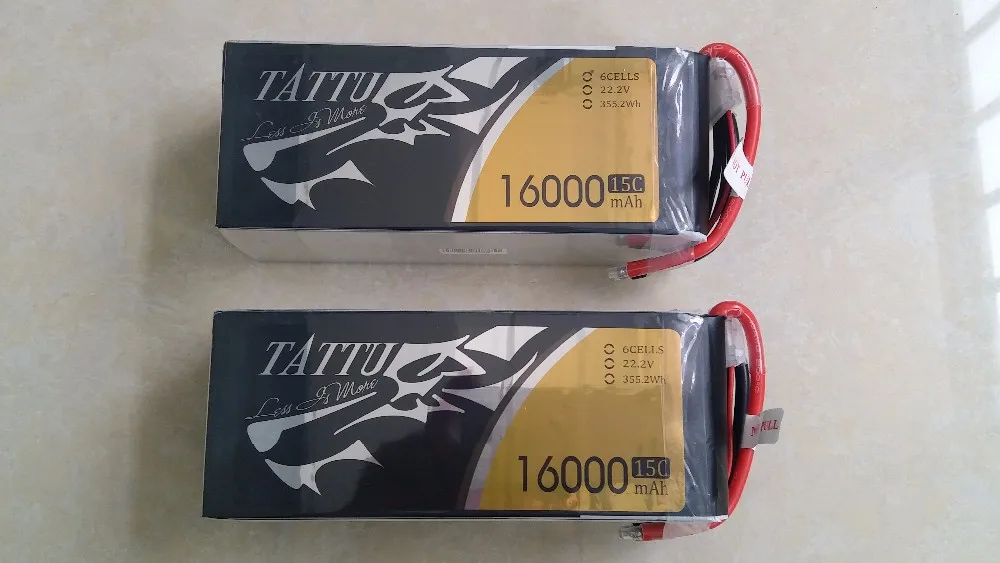

1) 16000mAh Li-Po Batteries*2, life up to 300 cycles, high quality and durable.
2) 12S brushless heavy duty motor*1, specially designed, dustproof, with internal centrifugal fan ensure work continuously for a long time.

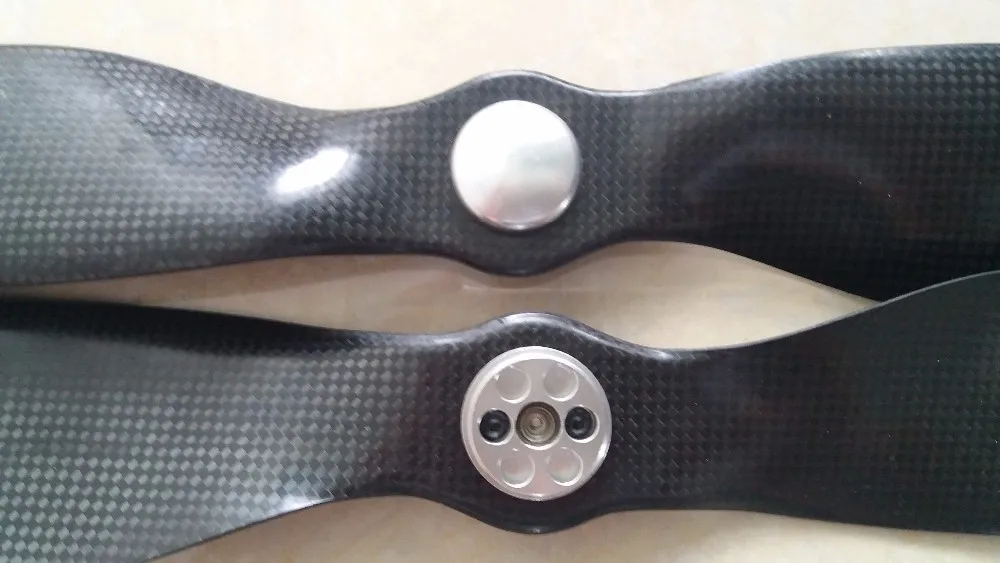

3) Carbon fiber composite propeller, much lighter and durable, better dynamic balance.
4) ESC: rapid throttle response higher driving efficiency.

Control System: Remote control, Flight control, GPS

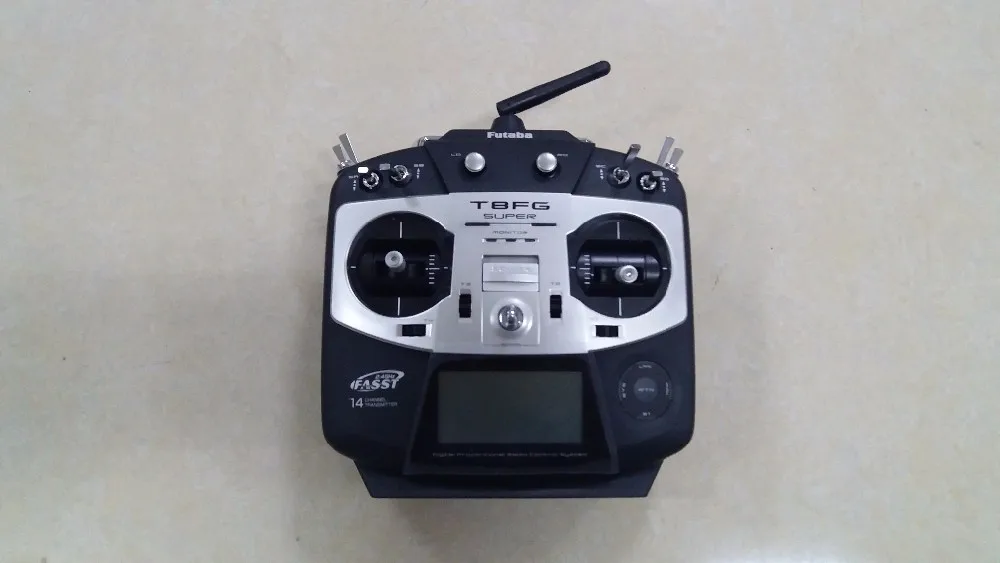

1) Remote control: Futaba, world famous

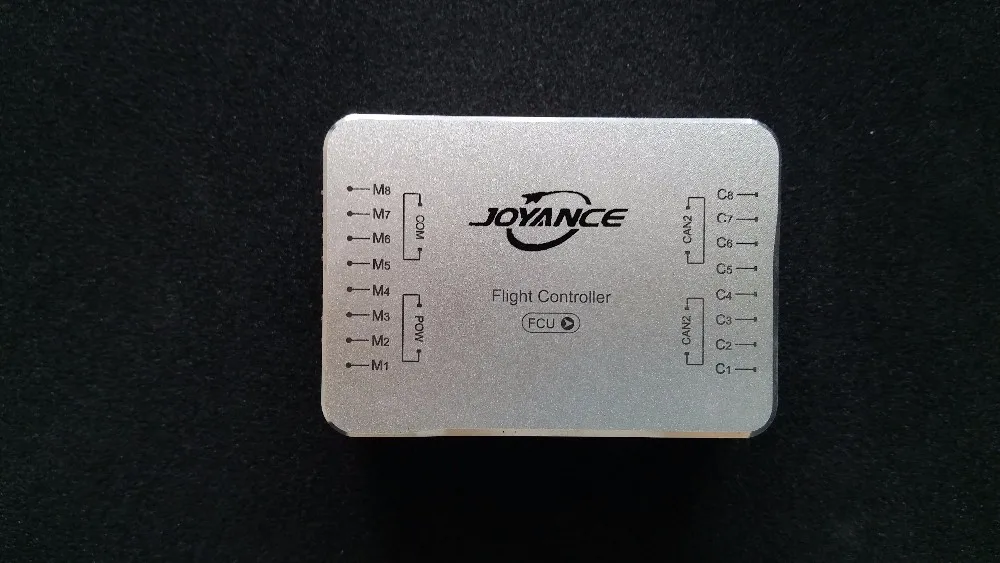

2) Flight control: Breakpoint continue to spray, Failsafe and return, Low battery protection

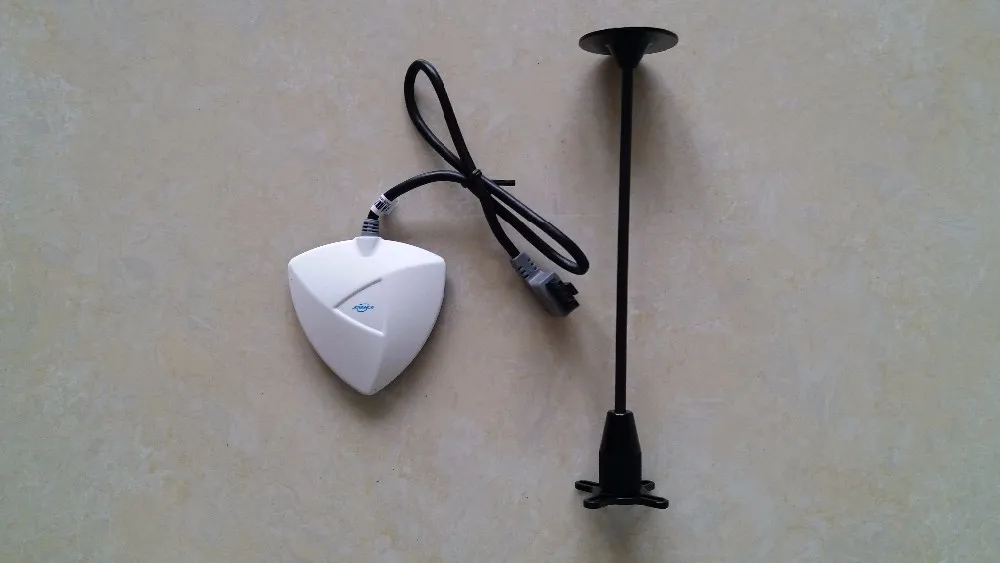

3) GPS: U-blox m8n GPS, hovering accuracy +/- 0.5m

Spraying System: Pesticide tank, Pipe, Nozzle, Jet, Relief valve

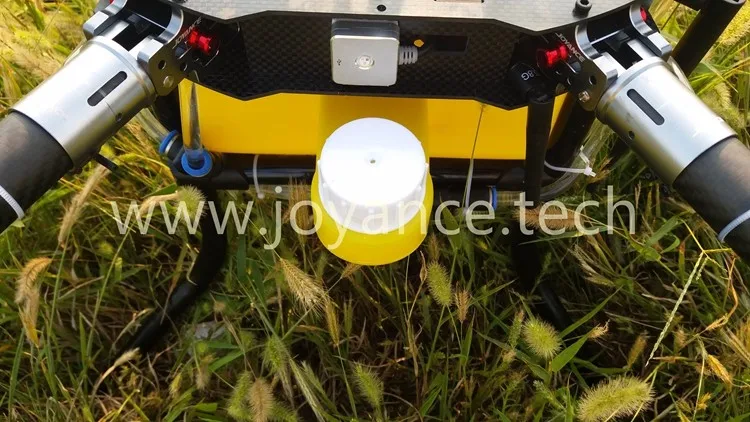

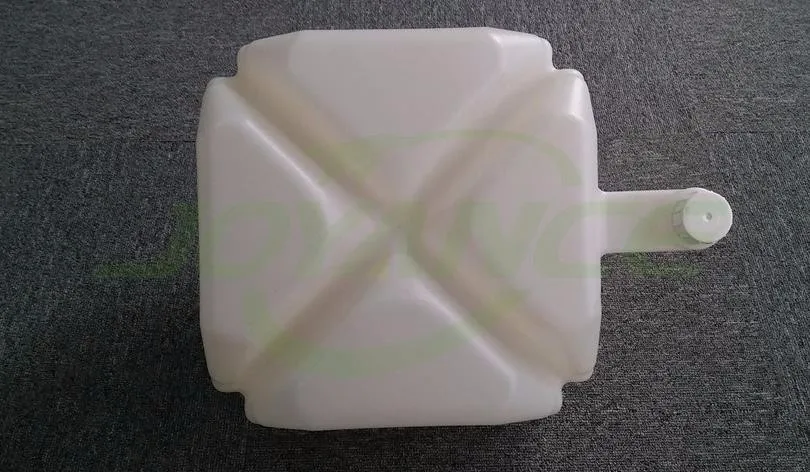

Pesticide tank: Anti-surge, specially design make the tank stronger

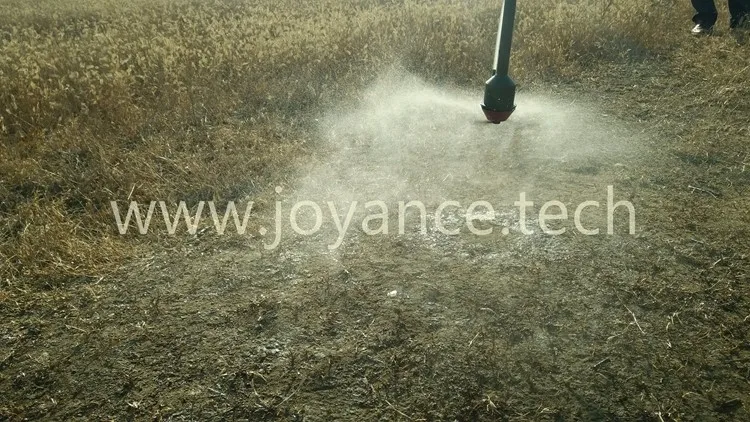

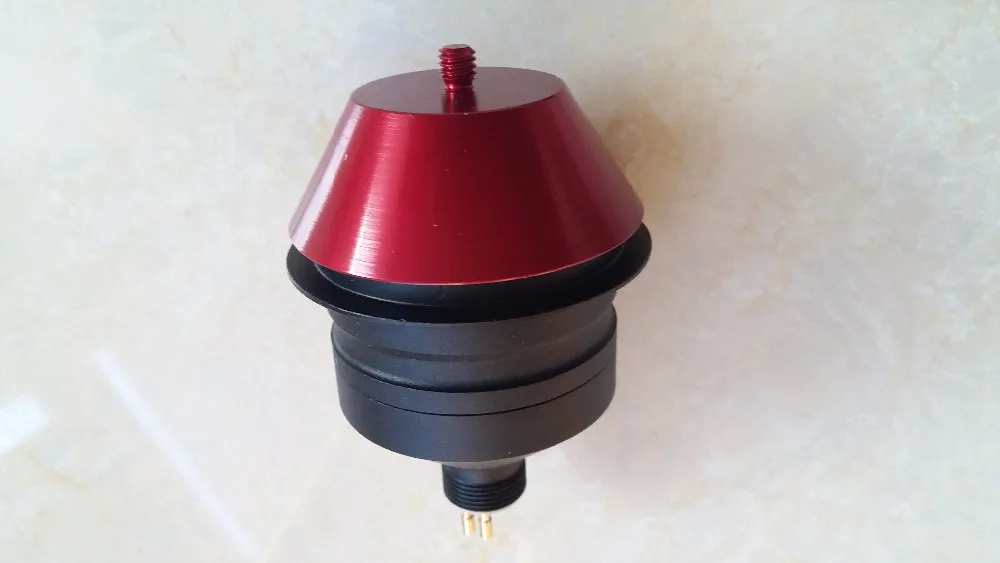

Nozzle: electrostatic centrifugal spray nozzles, reduce cost of product, cost of labour in application time with superior coverage. Safer with no spray drift, less exposure to worker and environment .

Ordinary Ground Station

If you want to spray this field, you need to draw many many lines, you need to draw from 1-2, 2-3, 3-4....until 19-20, it is a very boring work.

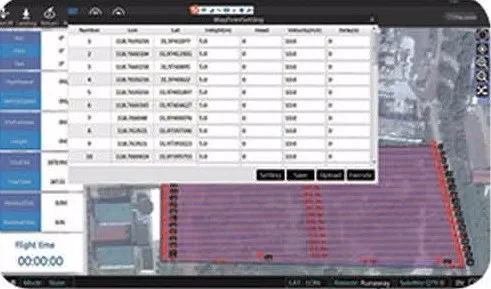

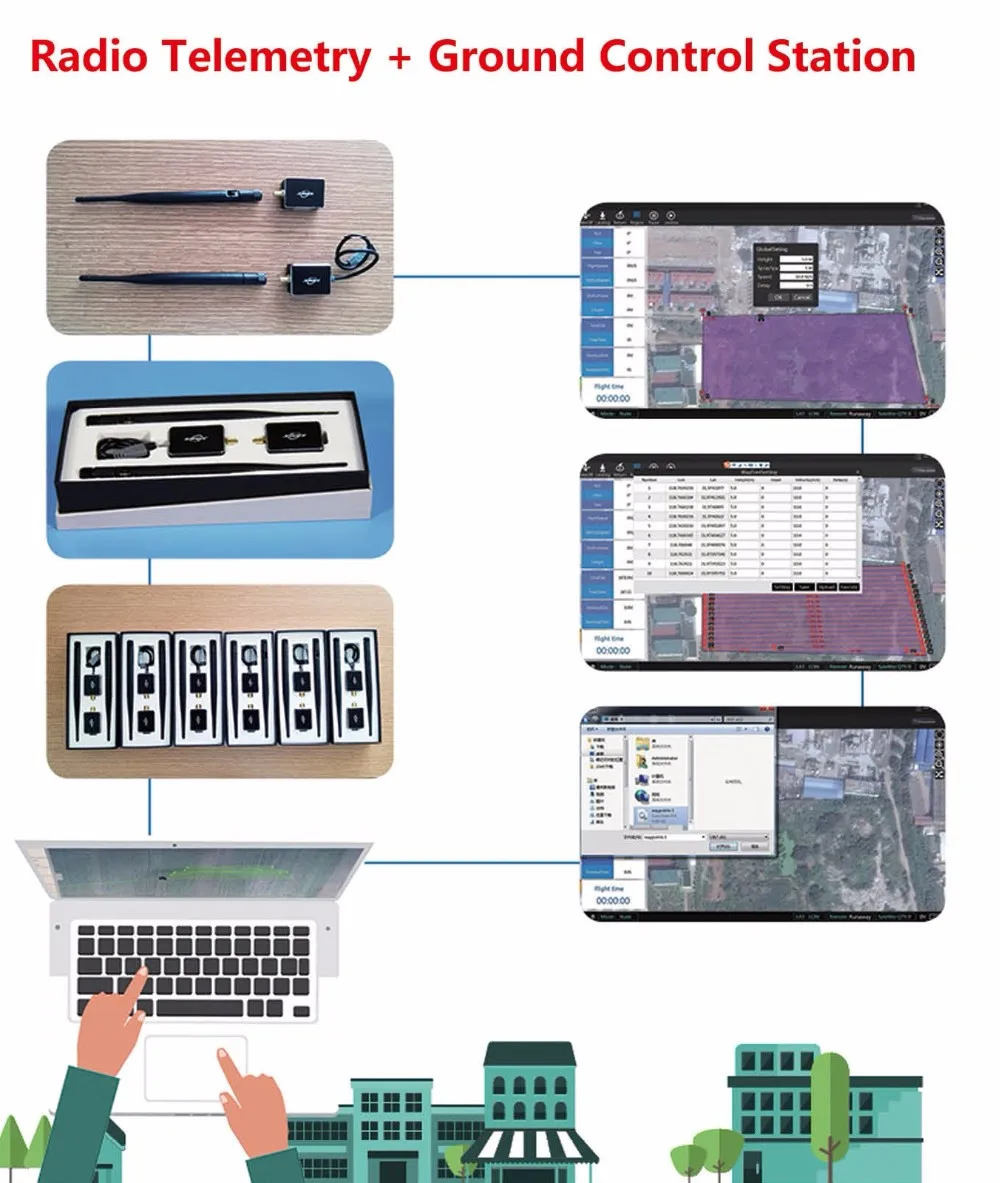

Joyance Ground Station

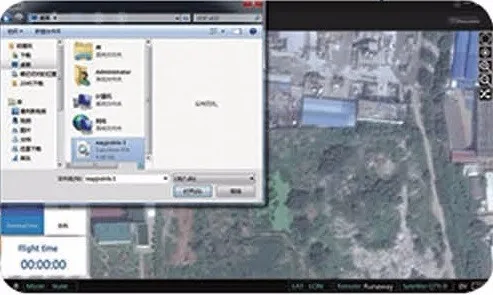

Mark A B C D, and define the flying height, spraying width, flying speed and delay time, the Ground Station Software will draw all the lines automatically,and you can save this as one project, so that you can use it again when you need to spray this field once more.Ordinary drones also have autonomous flight with waypoints, but they are quite different with our intelligent autonomous flight!

Optionals: FPV, DCU, Terrain Following

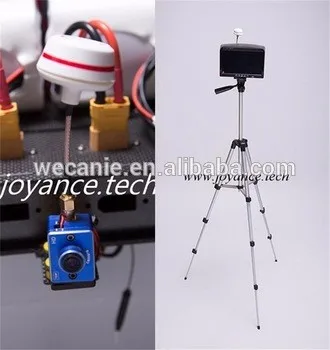

FPV

Parts:Camera,Screen,OSD,Image transmission.
Monitor spraying progress and show flight data.

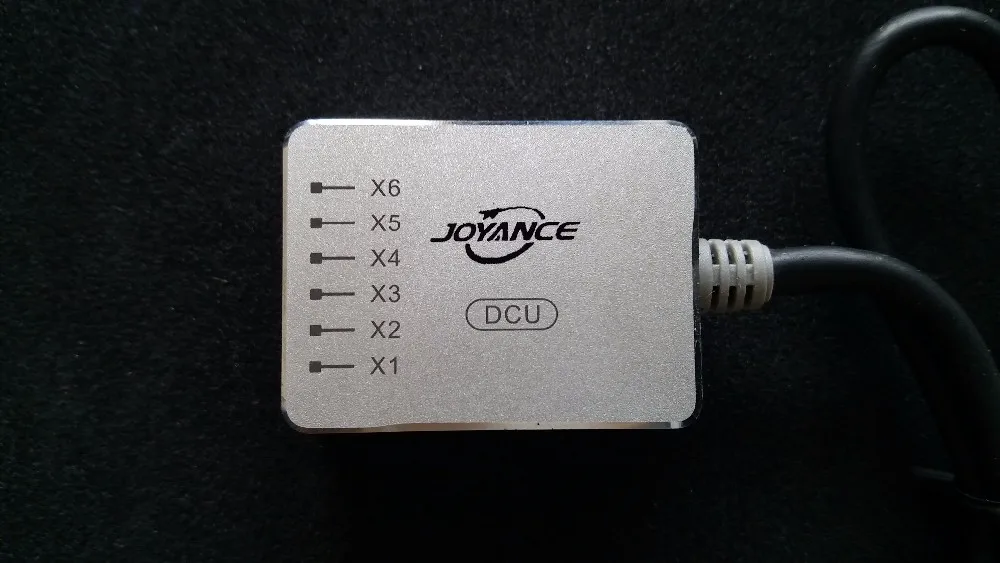

DCU

Automatically control spraying speed according to flying speed.

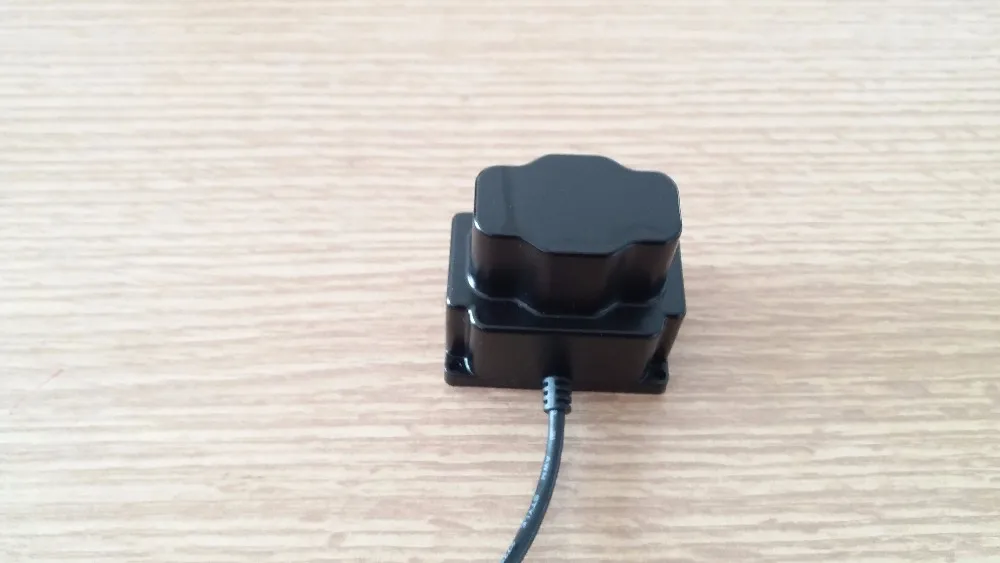

Terrain Following

Keep fixed height to crops, better spraying effect.

Features of Sprayer Drone 15-606:

1) Efficient
Drone width 1.55m; Spraying width 4~6m.
2) Effective.
Spraying 1500~3000sq.m/min
3) Easy to operate.
A single finger can operate the drones forward and reverse movement at an assigned speed, while maintaining the same altitude and trajectory.
4) Works continuously.
As there are six axles, the drones can work continuously and the even distribution of the workload, allows the motors to easily bear the workload. There's considerable time saving due to the avoidance of a cooling down period for the motors.
5) Quality control.
Before despatch, every drone is 100% tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.

Product Details

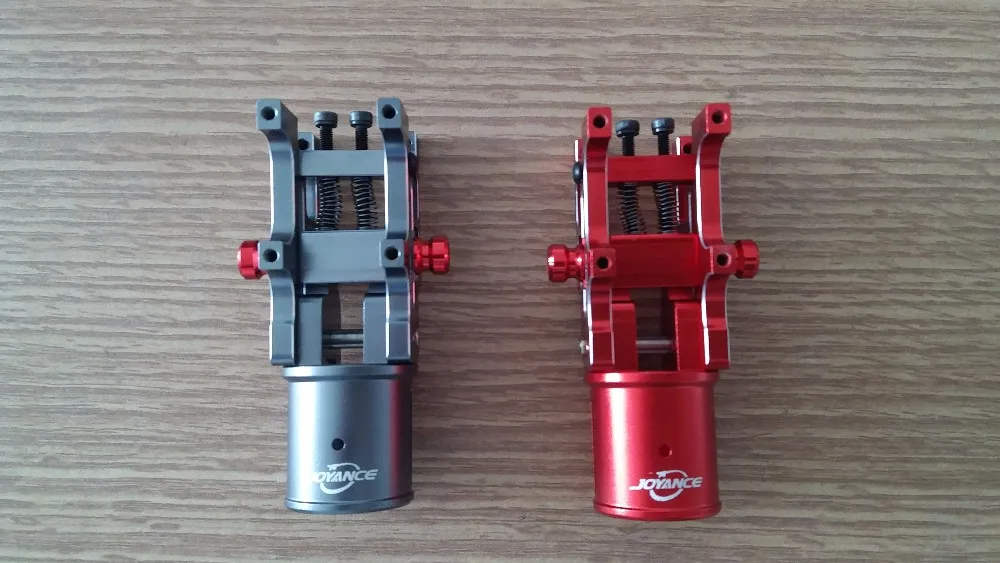

Aviation Aluminum Folding Joint

Umbrella folding frame,save space and easy to transport,a small truck can carry the drone.

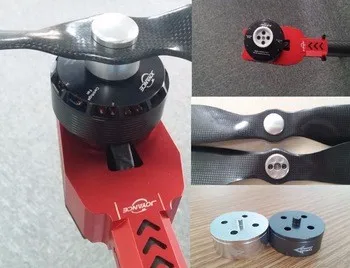

Quick Release Prop Adapters

No more breaking propellers during transportation and less frustration with a fast and easy setup.

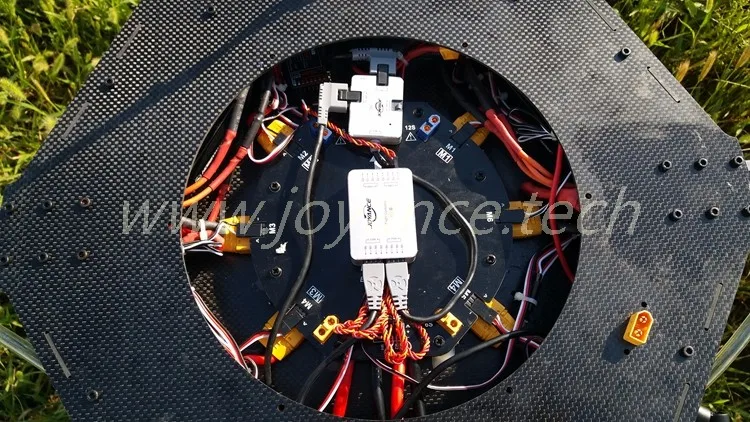

Neat Designed Wiring Plate

We adopt a special wiring board to assemble the electric motor and ESC, which ensures the internal wires are neatly arranged.

Product Advantage

Compare with Tradition Spraying

1) Security:protect farmers away from pesticide harm
2) High economic benefit

3) Strong adaptability

4) Environment protection

Comapre with Other Brands

1) Easy to operate

2) Low maintain cost

3) Durable quality

4) High tech design, make perfect characters

Packing & Delivery

1) We offer air, sea and land transportation;

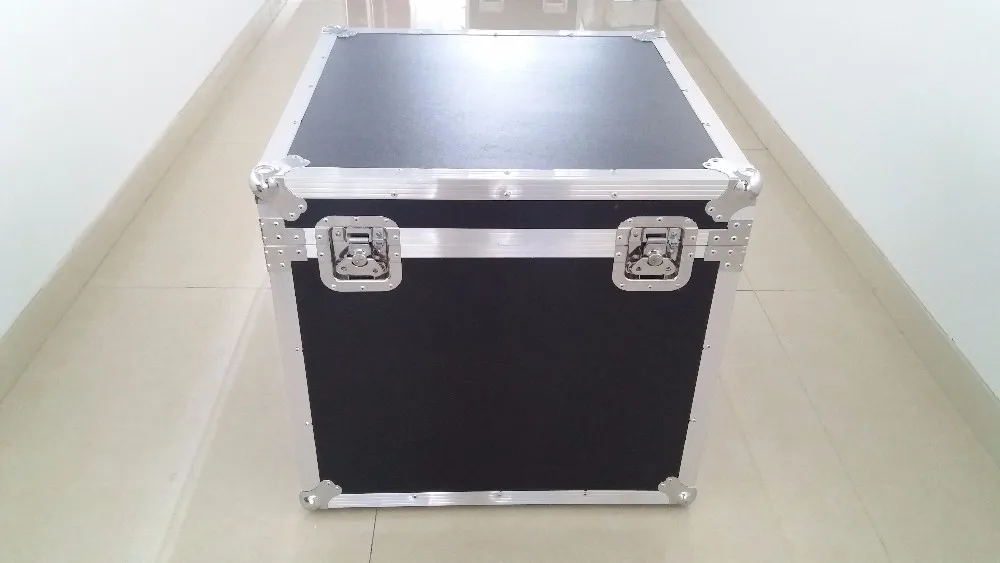

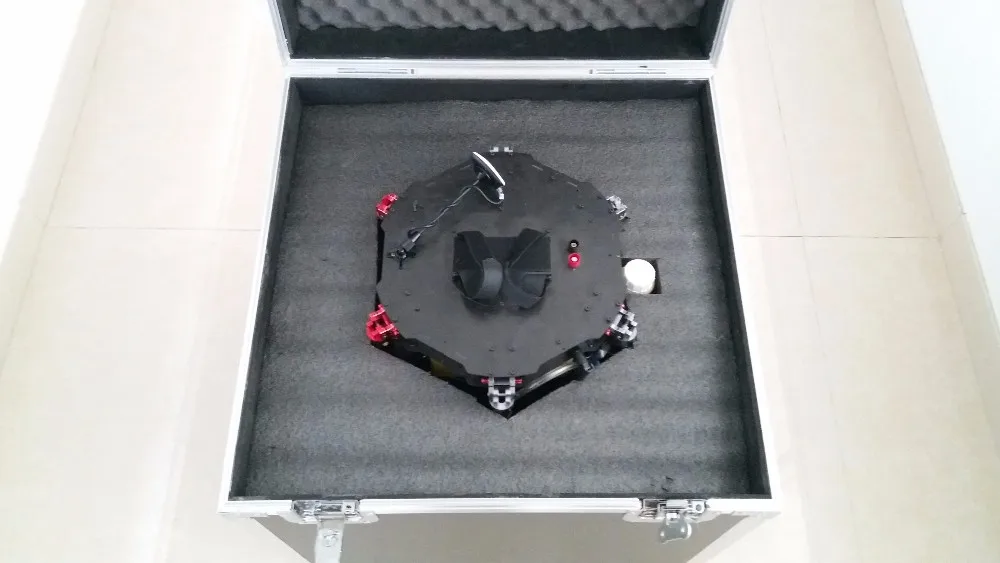

2) One unit drone with all the options will be put into one Aluminum packing case;
    Packing size: 70cm(Length) x 70cm(Width) x 55cm(Height);
3) Payment: 50% TT depoit, balance before shipment.
4) Delivery time: 7-15 days after receiveing 100% payment.

Our Company

Shandong Joyance Intelligence Technology Co., Ltd.

Professional manufacturer of Crop Spraying drone and Aerial Image drone.
We hava professional R&D team and experienced management team, concentrates on commercial grade unmanned aerial vehicles and UAV application solution. For crop spraying drone, we have three models: 6kg,10kg and 15kg pesticide payload, suitable for different area of field. Registered capital 60 million RMB, with production capacity 300 units of agriculture drones monthly, and 600 units of aerial imaging drones monthly. We have passed CE, FCC and ROHS certificate.

Our Service

1. provide operation manual & video, and free training in our factory
2. on-line technical support
3. All the spare parts are easy to be replaced by customers themselves.

Our Partners

Joyance Drones have been exported to 30 countries in the world, include France, Ireland, Japan, Sri Lanka, Australia, Indonesia, South Africa, USA, Panama, Salvador, Colombia and Brazil and etc. They apply our drones spraying crops such as rice, wheat, corn, soybean, spraying fruits such as banana, apple, orange, sugarcane, and other plants such as tea, cotton, cocoa, palm, tobacco. We are still looking for dealers in other countries, it's a good market opportunity now, we would like to do business with you with win-win. If you are interested, please don't hesitate to contact us for more information.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory
Q:Why do you say your drone is efficient and effective?
A:Each nozzle is under propeller, most effective.Ordinary drone, usually it is equiped with horizontal spraying pole, only nozzles below the drone are effective.But our Joyance drone with big spraying width, it is quite efficient, and every nozzles are under propeller, so every nozzle is effective
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
