Quick Details

  • Type: agriculture drone
  • Condition: New
  • Year Built: 2017
  • Place of Origin: Shandong, China (Mainland)
  • Model Number: JT 15L-608
  • Feature: agriculture drone
  • load: 15L
  • Self Weight: 15kg
  • Max Take-off Weight: 40kg
  • Flying Time: 10-15min
  • Flying Radius: 0-1000m
  • Flying Height: 0-200m
  • Flying Speed: 0-12m/s
  • Spray Speed: 0-8m/s
  • Spray Width/Nozzle No.: >5-7m/6 nozzles

Packaging & Delivery

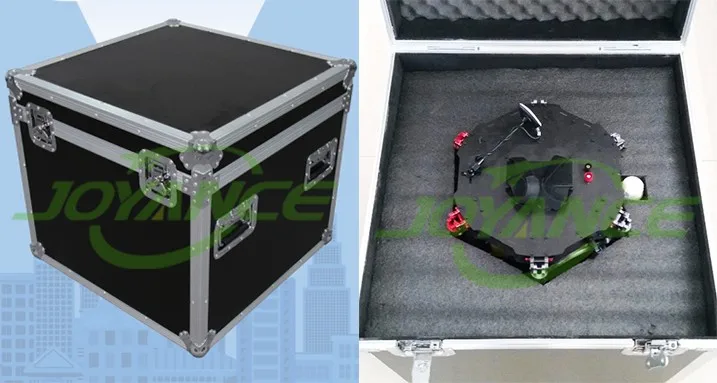

Packaging Details One agriculture drone with all the options will be put into one Aluminum packing case;
Delivery Time 7 days
Product Description

Product Application

The drones are widely applied to spray liquid pesticide and fertilizer on vegetables, tea, coffee, potato, wheat, rice, corn, sugarcane, grape, cherry, banana, coconut, etc. and achieved good effect.


SPECIFICATIONS OF JOYANCE MULTI-ROTOR AGRICULTURAL SPRAYER DRONE
Model
JT 6L-606
 ( 6 motors)
JT 10L-608
( 8 motors)
JT 15L-606
( 6 motors)
JT 15L-608
( 8 motors)
Pesticide Tank
6L
10L
15L
15L
Self Weight
7.5kg
11.5kg
13.5kg
15kg
Max Take-off Weight
15kg
28kg
35kg
40kg
Flying Time
10-15min
10-15min
10-15min
10-15min
Flying Height
0-200m
0-200m
0-200m
0-200m
Flying Speed
0-12m/s
0-12m/s
0-12m/s
0-12m/s
Spray Speed
0-8m/s
0-8m/s
0-8m/s
0-8m/s
Spray Width
>3m
>4m
>4m
>5m
Nozzle No.
4 high pressure nozzles
4 high pressure nozzles
2 electrostatic centrifugal nozzles
6 high pressure nozzles
Spray Efficiency
>2.4 ha/hr
>4.8 ha/hr
>4.8 ha/hr
>6.4 ha/hr
Remote Controller
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
FUTABA T8FG
Battery/Quantity
6S 12000mAh/1pc
6S 16000mAh/2pcs
6S 16000mAh/2pcs
6S 16000mAh/2pcs

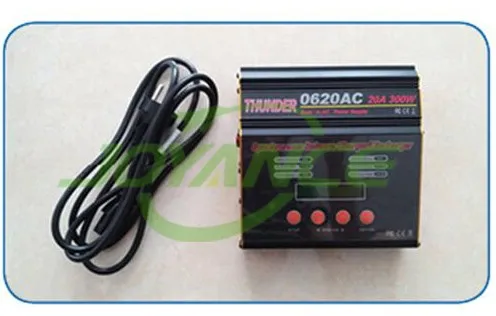

Adapter + Charger
Synchronous balance charger
Synchronous balance charger
Synchronous balance charger
Synchronous balance charger
Machine Size
 ( Spread )
W1.2mxL1.2mx
H0.3m
W1.8mxL1.3mx
H0.4m
W1.55mxL1.55mx
H0.35m
W2.55mxL1.55mx
H0.35m
Machine Size
( folded )
W0.5mxL0.4mx
H0.5m
W0.7mxL0.5mx
H0.5m
W0.7mxL0.7mx
H0.55m
W0.95mxL0.7mx
H0.55m
Packing Case
Aluminum Case
Aluminum Case
Aluminum Case
Aluminum Case

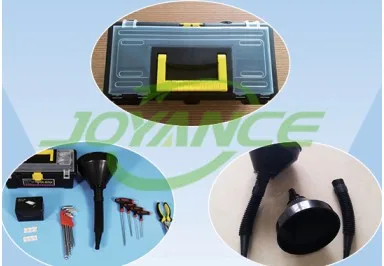

Toolkit
Maintenance
/Repair Tools
Maintenance
/Repair Tools
Maintenance
/Repair Tools
Maintenance
/Repair Tools
Optional Equipment
FPV
Fixed Camera + Image Transmission + OSD +
7' Screen + Tripod + Battery + Sun Shade
Ground Station
( Automatic Flight )
Radio Telemetry + Ground Control Station Software
DCU
With DCU, the drone can spray automatically. During hover time and change from one line to another line, the drone will not spray.
Terrain Following Radar
detect the distance between the drone and crops and keep the same distance

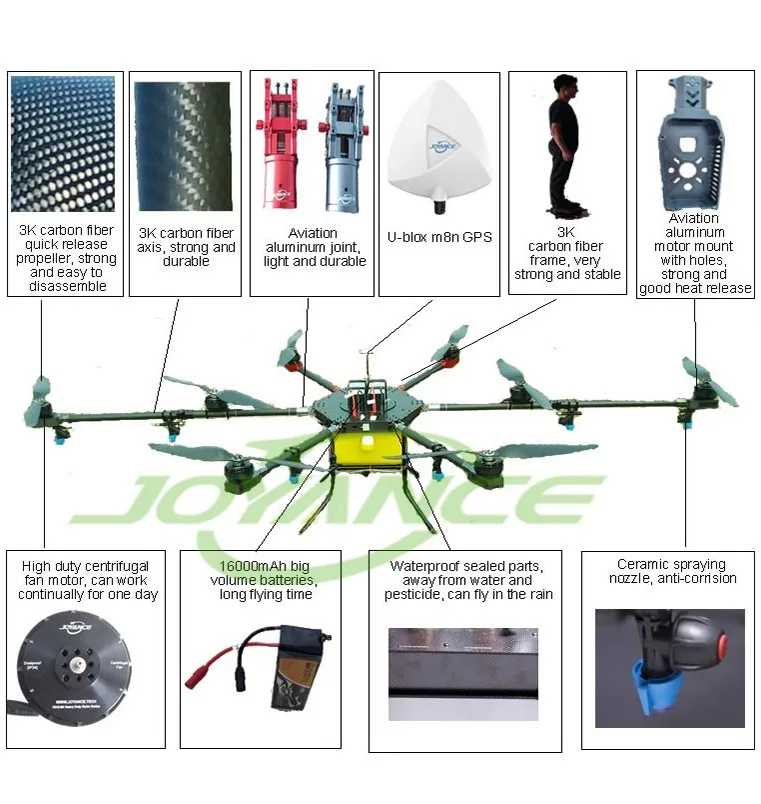

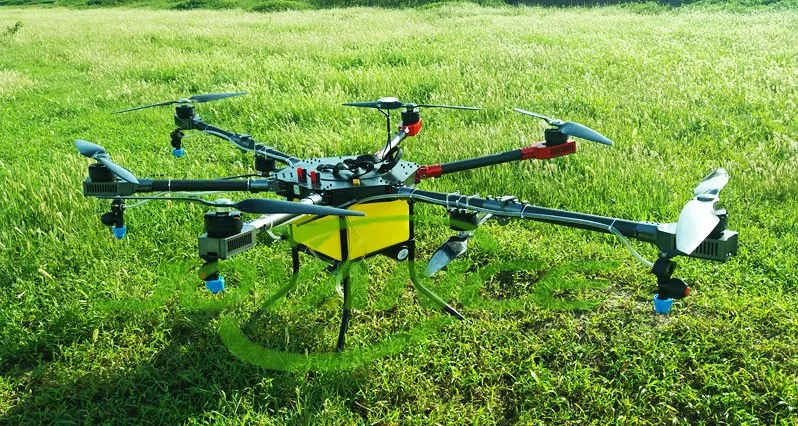

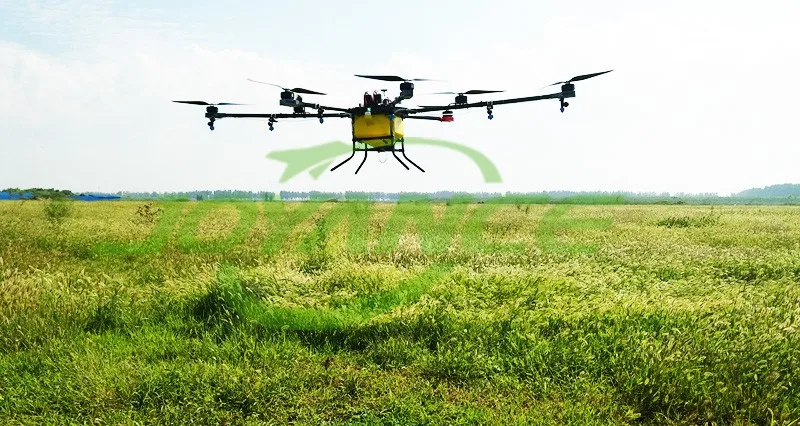

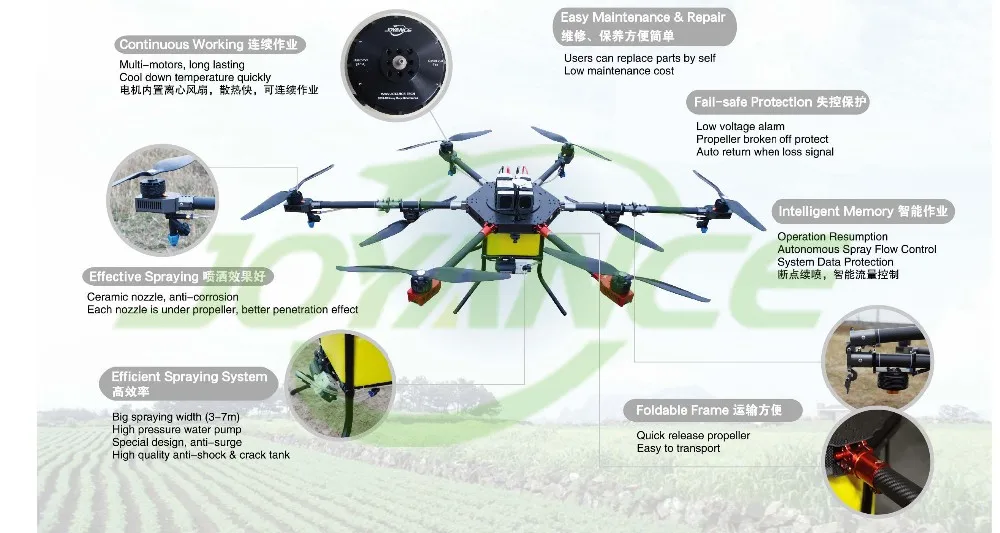

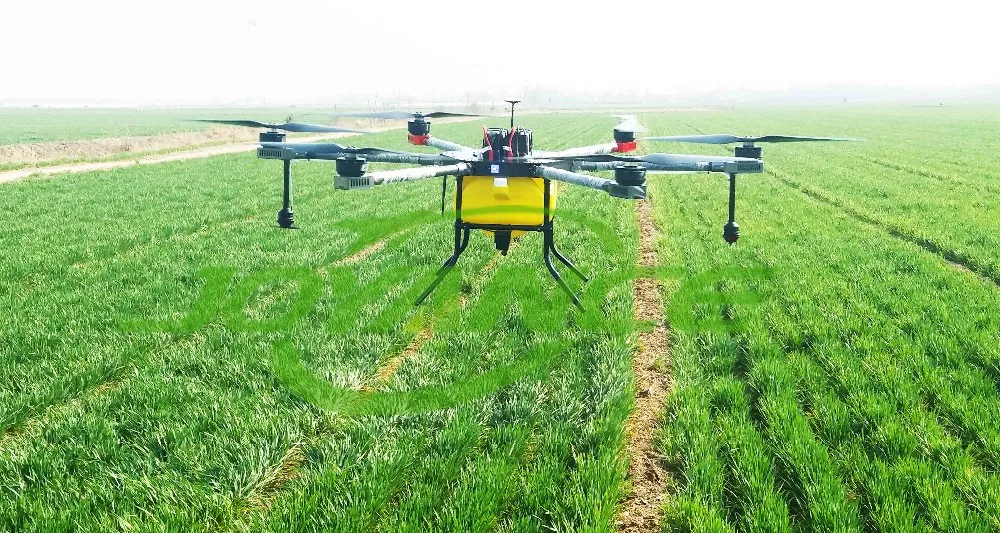

Joyance Agricultural Sprayer Drone

Joyance sprayer drone adopt ultra-low capacity spraying technology, with big spraying width, and high efficiency.

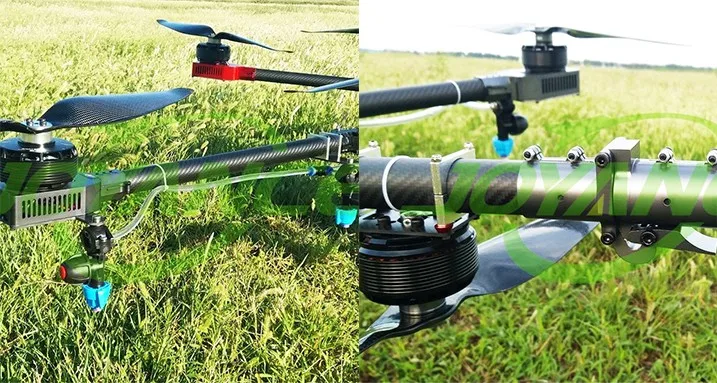

At the same time all nozzles are under wind pressure field of the rotors,
which can maximum to avoid the drift, diffuse and evaporation of ultra-fine pesticide fog,
to avoid the damage to drones caused by float-upward pesticide fog.

Detailed Description
Supply More

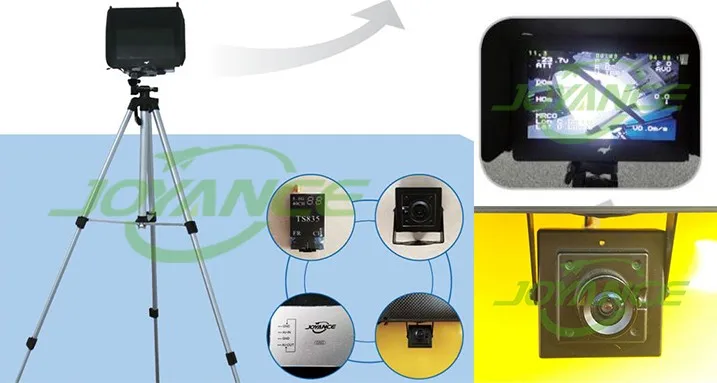

With FPV, the flight data will be displayed on the 7” screen, such as flight height, flight speed, battery voltage, satellite number, longitude, latitude, flight time, etc.

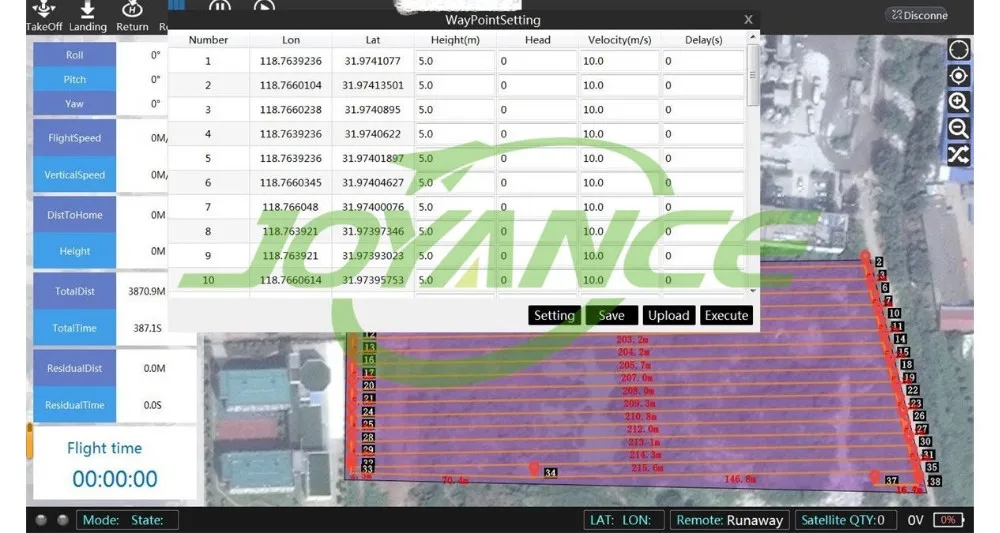

Joyance ground station software: just mark A B C D, and define the flying height, spraying width, flying speed and delay time, the Ground Station Software will draw all the lines automatically, and you can save this as one project, so that you can use it again when you need to spray this field once more.

Packing & Delivery
Customers
FAQ
Q. Are you trading company or factory?
A. We are a professional R&D and Production of agricultural drones factory.

Q. About Transportation?
A. a) by sea (to your nearest sea port)
     b) Air transport (to your nearest airport)
     c) Air express (to your specific address)


Q. About delievery time?
A. Generally it's 2-3 days if the goods are in stock, or it's 7-15 days if the goods are not in stock. It's according to the quantity.

Q. Package details?
A. One drone and options in one Alumium packing case
